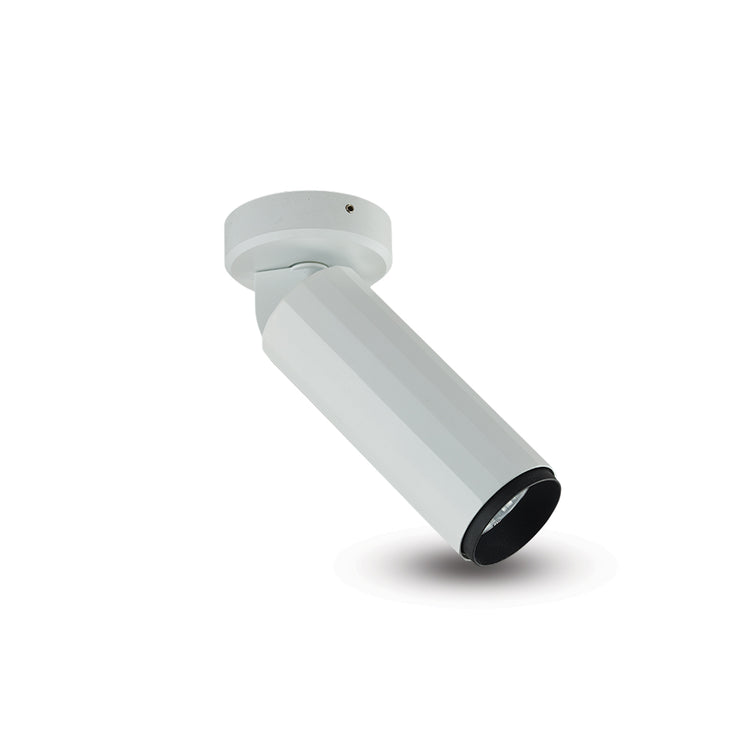

VONN ORBIT VMCL004101A008WH 2.75" 1 LIGHT LED ADJUSTABLE SURFACE MOUNTED SPOTLIGHT, ETL COMMERCIAL GRADE, White

SKU: VMCL004101A008WH   VONN Lighting

EnabLED - Licensing Program for LED Luminaires and Retrofit Bulbs
$143.96 $179.95

146 In Stock.

QUICK SHIP!  Ship In 24-48 Hours

LED Adjustable Surface Mounted Spotlight VMCL004101A008WH, Stock Item Beam Angle 36, White



Installation Guide Download
Specification Sheets Download
Line Drawing Download
IES Photometric File Download
IES Photometric File (IES) Download

LED Adjustable surface mounted spotlight, ORBIT Series
• Aluminum body structure available in 2 finishes Black and White
• Integrated AC LED fixture (120VAC - no driver needed), surface mounted
• EASY INSTALLATION: plug and play with very little additional wiring
• IC Rated
• Adjusts 350° left - right, adjusts 90° up - down
• OVERALL DIMENSIONS: 2.75" Diameter x 6.25"H
• BACKPLATE DIMENSIONS: 2.75" Diameter x 0.75"H
• LIGHT HEAD DIMENSIONS: 2" Diameter x 5"H
• HOLE SIZE: 1.5" Diameter
• ELECTRICAL BOX DIMENSIONS (supplied with the purchase for constructions that requires the electrical box): 4.33"L x 3.43"W x 1.34"H
• LENS BEAM ANGLE: offered in 3 beam angles 15° & 24°(special order required),  36°(stock beam angle)
• STOCK BEAM ANGLE: 36°
• DIMMABLE: ELV dimming
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 502.01 Lumens
• WATTAGE: 8W
• VOLTAGE: 120V
• CRI 90: is the highest measurement of light about the accuracy of color appearance
• IP Rate: IP20 (dry rated)
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4"***

Installation Guide Download
Specification Sheets Download
Line Drawing Download
IES Photometric File Download
IES Photometric File (IES) Download


UPC / GTIN

850003683768

Color Temperature

3000K

More Ways To Shop

SalePromo

Availability

Stock Item

Style

Modern

Application

Commercial

Product Type

Downlight Surface Mount

Hole Size (in)

1.5" Dia

Dimming

ELV

Dimmable

Yes

Driver

AC LED

IP Rate

IP20

CRI

90

Power (W)

8W

Luminous Flux (delivered) (Lm)

502.01

Voltage (V)

120V

Series

ORBIT

Materials

Aluminum, Iron, PMMA

Product Height

6 to 7 inches

Product Width

2 to 3 inches

Product Length

2 to 3 inches

Product Dimensions (in)

2.75" Dia x 6.29" H

Adjustable

Y

Finish

White

Lense Beam Angle

15 24 36

Room

BedroomDining RoomFoyerHallwayKitchenLiving Room
