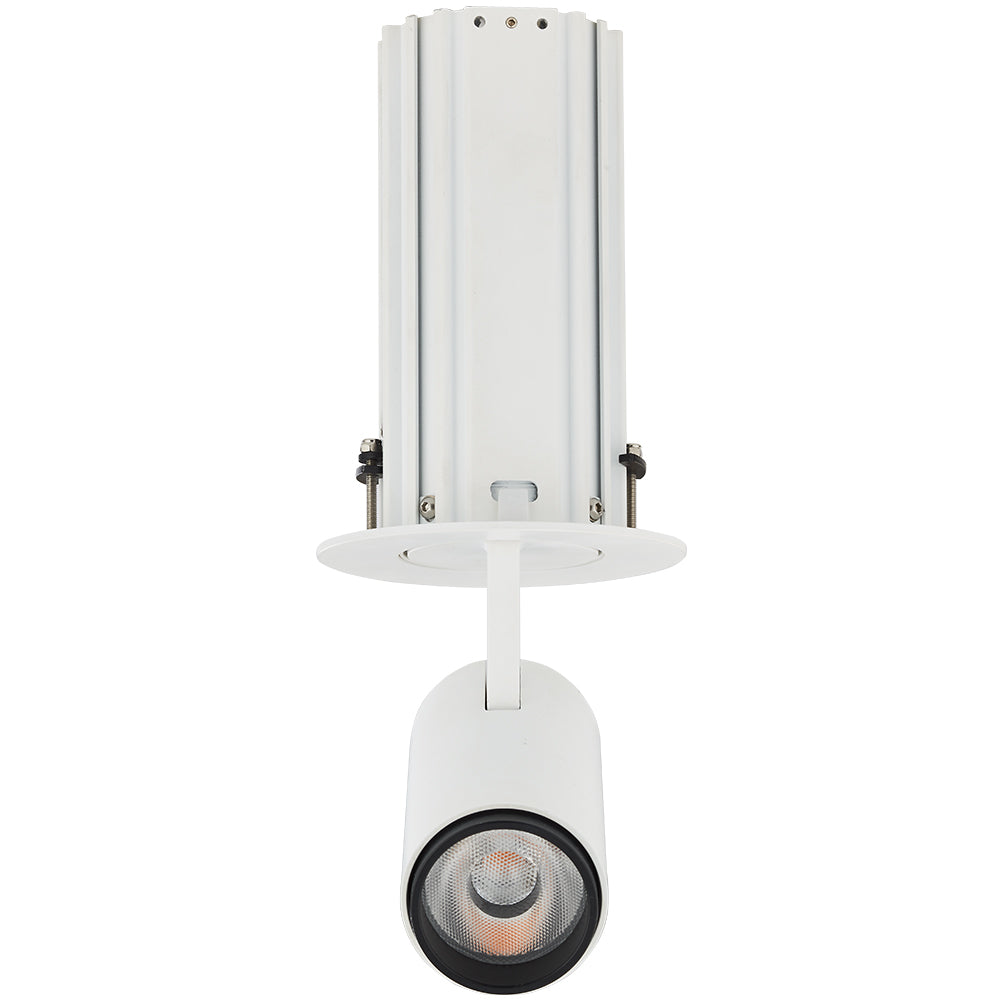

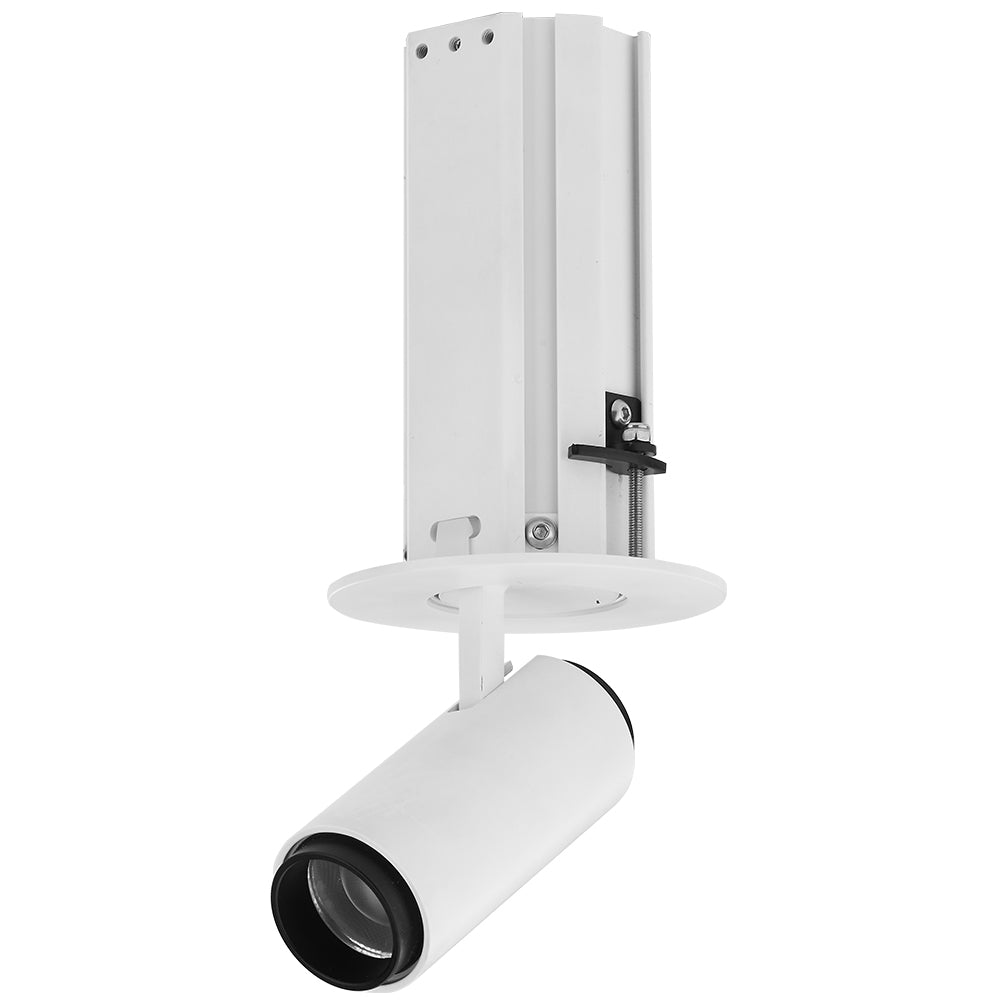

VONN TELESCOPICA VMDL003001B012WH 3.75" 1 LIGHT LED ADJUSTABLE RECESSED SPOTLIGHT, ETL, COMMERCIAL GRADE, White

SKU: VMDL003001B012WH   VONN Lighting

EnabLED - Licensing Program for LED Luminaires and Retrofit Bulbs
$224.95

54 In Stock.

QUICK SHIP!  Ship In 24-48 Hours

3.75", 13W LED Adjustable Recessed Spotlight VMDL003001B012WH, Stock Item Beam Angle 36, White

Installation Guide Download
Specification Sheets Download
Line Drawing Download
IES Photometric File Download
IES Photometric File (IES) Download

LED Flush mounted adjustable downlight, TELESCOPICA Series
• Aluminum body structure available in White finish
• Integrated LED fixture, recessed installation with remote driver (included)
• IC Rated
• Adjusts 350° left - right, adjusts 90° up - down
• OVERALL DIMENSIONS:  3.75" Diameter x 6.25"H, adjustable height to 11"
• LIGHT HEAD DIMENSIONS: 2" Diameter x 4.5"H
• RECESSED HOUSING DIMENSIONS: 3" Diameter x 6.25" H
• HOLE SIZE: 3" Diameter
• ELECTRICAL BOX DIMENSIONS (for included remote driver): 8.46"L x 1.77"W x 1.57"H
• LENS BEAM ANGLE: offered in 3 beam angles 15° & 24°(special order required), 36°(stock beam angle)
• STOCK BEAM ANGLE: 36°
• DIMMABLE: Dimming 0-10V
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 974.8 Lumens
• WATTAGE: 12W
• VOLTAGE: 100-277V
• CRI 90: is the highest measurement of light about the accuracy of color appearance
• IP Rate: IP20 (dry rated)
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4"***

Installation Guide Download
Specification Sheets Download
Line Drawing Download
IES Photometric File Download
IES Photometric File (IES) Download


UPC / GTIN

850003683966

Style

Modern

Application

Commercial

More Ways To Shop

SalePromo

Room

BedroomDining RoomFoyerHallwayKitchenLiving Room

Availability

Stock Item

Product Type

Downlight Recessed

Series

TELESCOPICA

Finish

White

Adjustable

Y

Product Dimensions (in)

3.75" Dia x 6.3"-11"H

Product Length

3 to 4 inches

Product Width

3 to 4 inches

Product Height

6 to 7 inches

Materials

Aluminum, Iron, PMMA

Luminous Flux (delivered) (Lm)

974.8

Power (W)

12W

Voltage (V)

100-277V

Color Temperature

3000K

CRI

90

IP Rate

IP20

Driver

YG

Dimmable

Yes

Dimming

0-10V

Hole Size (in)

3" Dia

Lense Beam Angle

15 24 36
