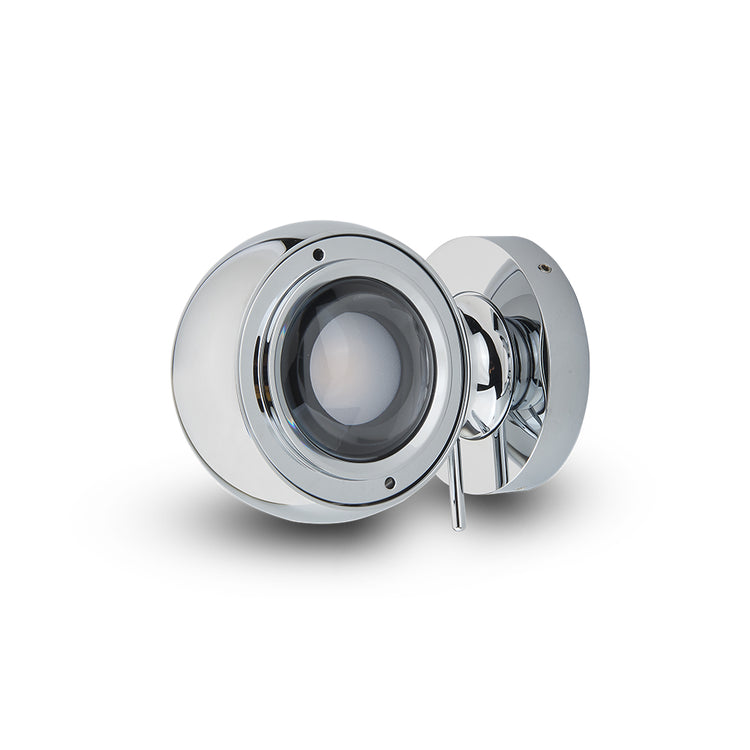

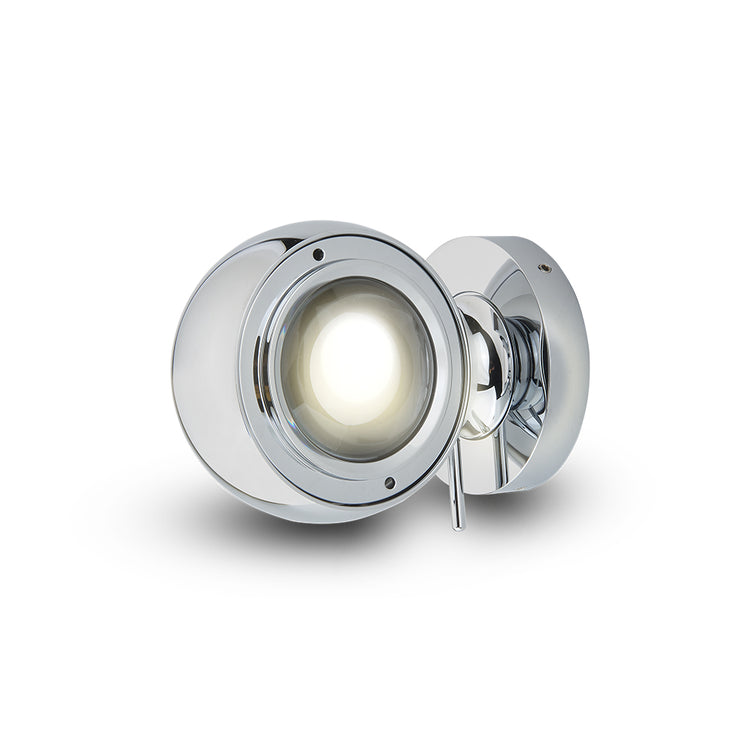

VONN ORBIT VMWA004201A008CH 3.25" 1 LIGHT LED ADJUSTABLE WALL MOUNT, ETL CERTIFIED, COMMERCIAL GRADE, Chrome

SKU: VMWA004201A008CH   VONN Lighting

EnabLED - Licensing Program for LED Luminaires and Retrofit Bulbs
$279.95

46 In Stock.

QUICK SHIP!  Ship In 24-48 Hours

LED Adjustable Wall Mount VMWA004201A008CH, Chrome

    Installation Guide Download
    Specification Sheets Download
    Line Drawing Download
    IES Photometric File Download
    IES Photometric File (IES) Download

    LED Adjustable wall + ceiling downlight, ORBIT Series
    • Aluminum body structure available in 2 finishes Chrome and Antique Brass
    • Integrated AC LED fixture (120VAC - no driver needed), surface mounted
    • EASY INSTALLATION: plug and play with very little additional wiring
    • IC Rated
    • Adjusts 350° left - right
    • Light direction up and down
    • OVERALL DIMENSIONS: 3.25"W x 4"D x 3"H
    • BACKPLATE DIMENSIONS: 3" Diameter x 0.5"H
    • LIGHT HEAD DIMENSIONS: 3.25" Diameter x 2.5"H
    • HOLE SIZE: 1.5" Diameter
    • ELECTRICAL BOX DIMENSIONS (supplied with the purchase for constructions that requires the electrical box): 4.33"L x 3.43"W x 1.34"H
    • LENS BEAM ANGLE: 85°
    • DIMMABLE: ELV dimming
    • CCT: 3000 Kelvin color temperature
    • BRIGHTNESS: 383.98 Lumens
    • WATTAGE: 8W
    • VOLTAGE: 120V
    • CRI 90: is the highest measurement of light about the accuracy of color appearance
    • IP Rate: IP44 (damp rated)
    • ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
    • 3 Year Limited Warranty
    ***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4"***

    Installation Guide Download
    Specification Sheets Download
    Line Drawing Download
    IES Photometric File Download
    IES Photometric File (IES) Download


    UPC / GTIN

    850003683652

    Voltage (V)

    120V

    More Ways To Shop

    SalePromo

    Availability

    Stock Item

    Style

    Modern

    Application

    Commercial

    Product Type

    Downlight Surface Mount

    Hole Size (in)

    1.5" Dia

    Dimming

    ELV

    Dimmable

    Yes

    Driver

    AC LED

    IP Rate

    IP20

    CRI

    90

    Color Temperature

    3000K

    Power (W)

    8W

    Series

    ORBIT

    Luminous Flux (delivered) (Lm)

    383.98

    Materials

    Aluminum, Iron, PMMA

    Product Height

    1 to 2 inches

    Product Width

    3 to 4 inches

    Product Length

    4 to 5 inches

    Product Dimensions (in)

    3.26"W x 3.93"D x 2.95"H

    Adjustable

    Y

    Finish

    Chrome

    Lense Beam Angle

    85

    Room

    BathroomBedroomDining RoomFoyerHallwayKitchenLiving Room
